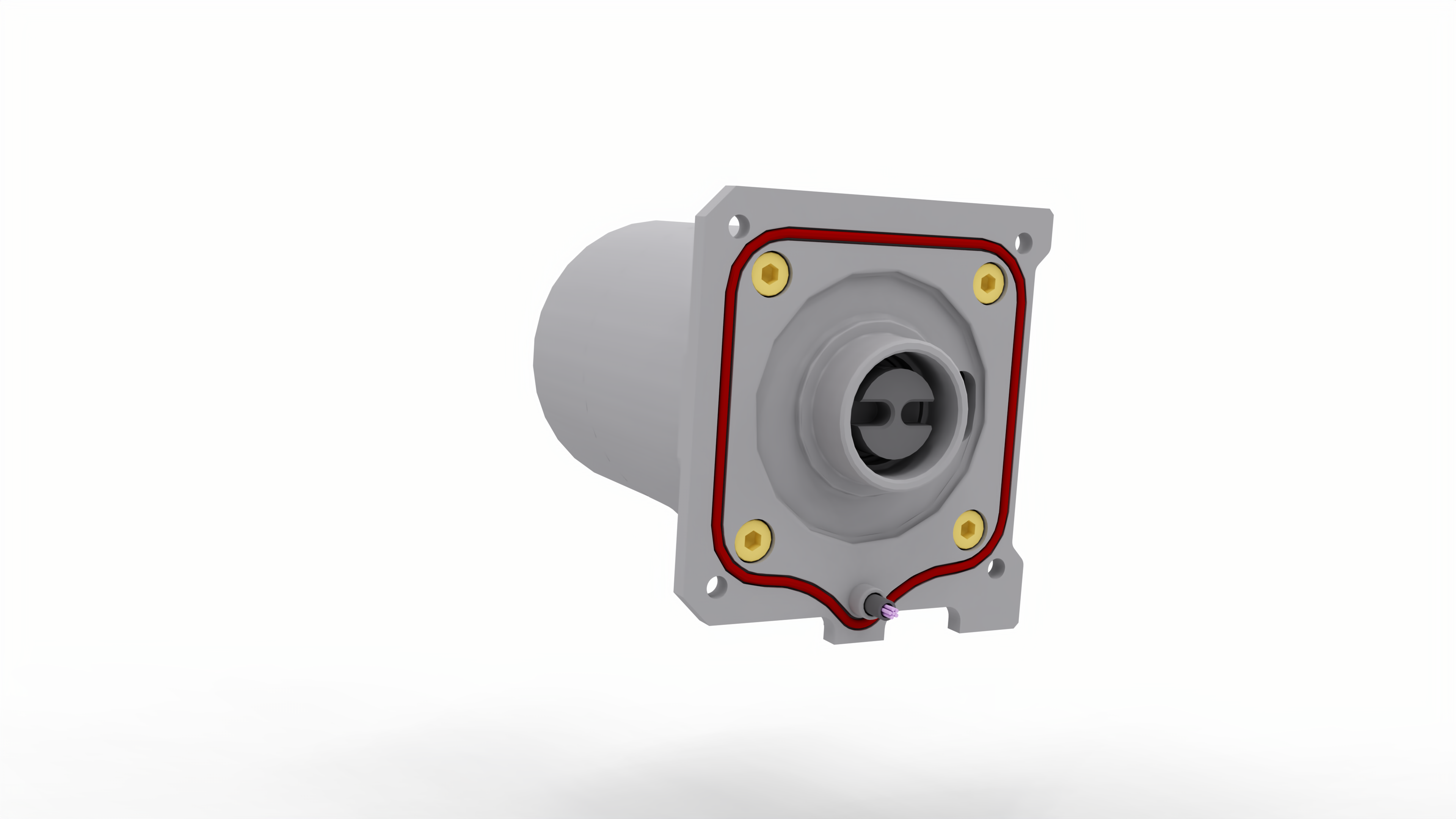

DC MOTOR

TEMA has designed and manufactured this high efficency DC motor, installed on a military aircraft to drive movement of the steering main landing gear. The main characteristics are:
Continuos torque max 300mNm @5,8Arms
Stall torque 0.9Nm @11 Arms
Power 25W
L = 0.55 mH +/- 30%
R= 0.35 Ohm +/- 30%
Ke= 3.5 Vrms/Krpm line -line
Kt = 0.0578 Nm/Arms
Temperature sensor PT1000
Motor inertia 4.256e-5 kg m2
