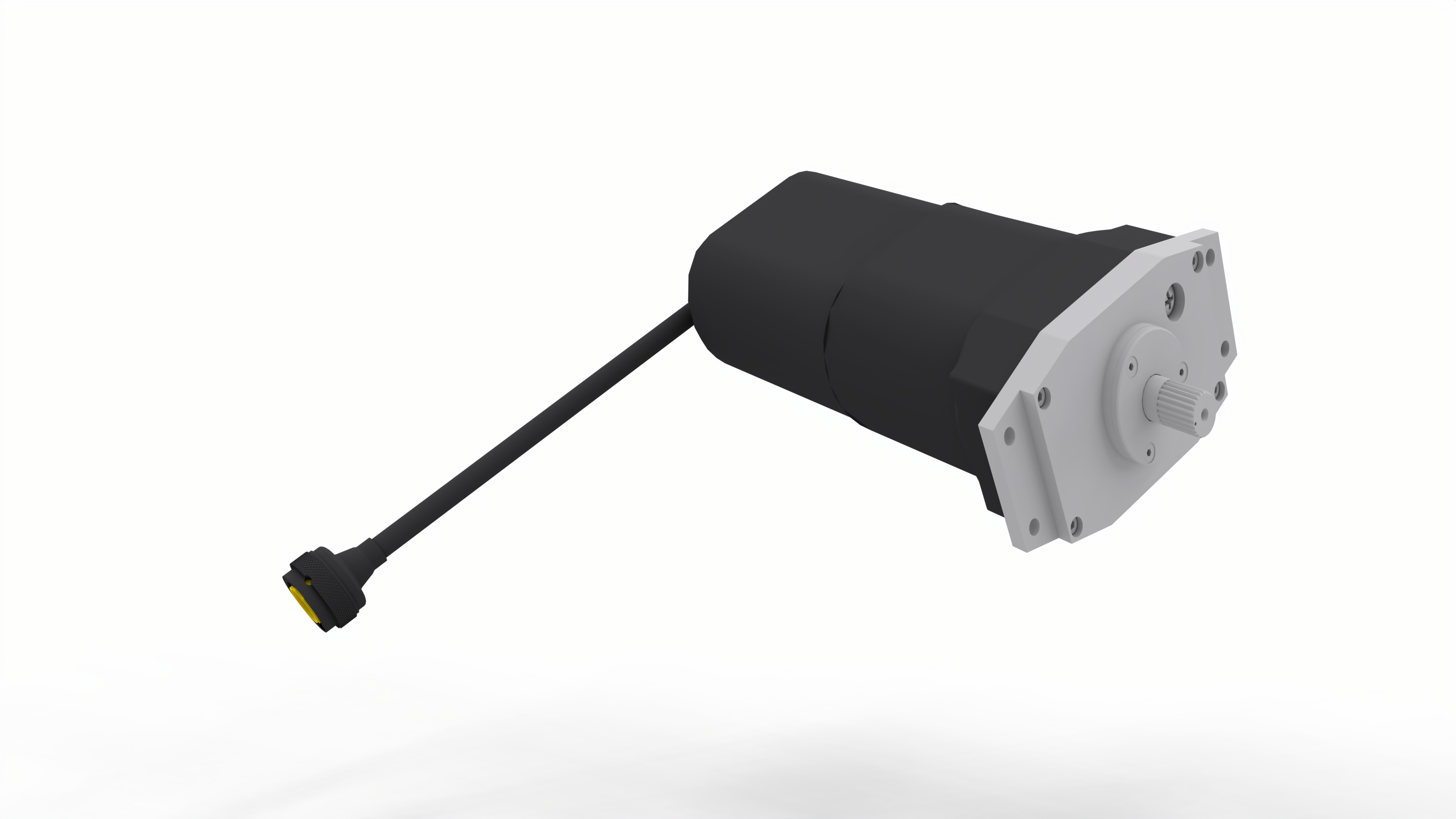

SERVOACTUATOR

TEMA Servoactuator is designed to actuate the flight control surfaces on R.P.V. and Drones.
A watertight container incorporates:
- A rare-earth permanent magnet servo motor
- An high efficiency gearing with precision ball bearing produced from stainless steel and life lubricated
- An integral P.W.M. servo amplifier provides signal conditioning, bi-directional motor driving with mosfet H bridge, position loop control, pulse by pulse current limiting, E.M.I. filtering and an independent feedback potentiometer.
The output shaft position is proportional to a differential control signal (O-5 Vdc) at connector pins.
TEMA rotary actuator is fully qualified per MIL-STD-810E.
